How to Calculate Upper and Lower Fence Lines

Knowing how to calculate upper and lower fence lines keeps your material order accurate, especially on sloped or uneven ground. Below you’ll find the formulas, worked examples, and diagrams to measure each fence line, plus a quick way to estimate posts and concrete.In this guide

1. What are upper and lower fence lines?
2. How to calculate the lower fence line
3. How to calculate the upper fence line
4. Calculating fence lines on a slope
5. Stepped vs. racked fence
6. Worked example: three sloped sections
7. Fence posts and concrete
8. Measuring tips
9. FAQ

What Are the Upper and Lower Fence Lines?

The lower fence line follows the bottom of the fence, along the ground. The upper fence line is the matching line along the top. On level ground the two are parallel and about the same length. On a slope, the relationship depends on how you install the fence: panels that follow the ground look and measure differently from level-top panels with stepped bottoms.

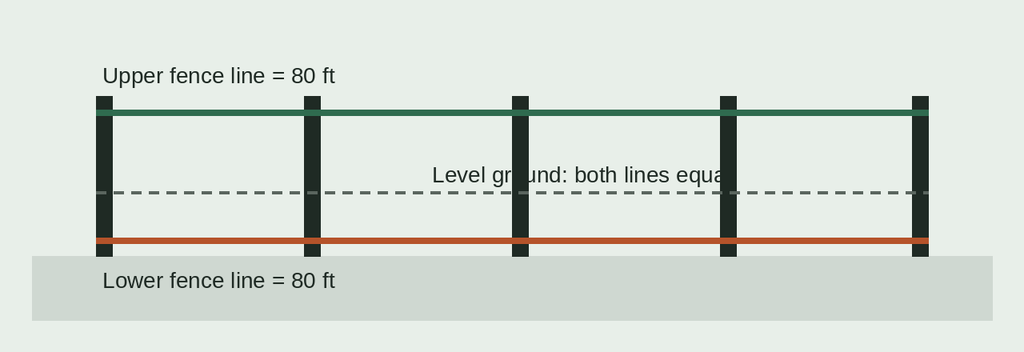

Getting both lines right helps you set the correct fence height, panel layout, post positions, and material quantities. Upper and lower fence lines on level ground A level fence 80 feet long with the upper fence line along the top and the lower fence line along the ground. Upper fence line = 80 ft Lower fence line = 80 ft Level ground: both lines equal On level ground, the upper and lower fence lines are equal to the total fence run.

How to Calculate the Lower Fence Line

For a straight fence on level ground, the lower fence line is the total horizontal length of the run.

Lower Fence Line = Total Fence Length

For an 80-foot run, the lower fence line is 80 feet. If the fence has several sections, add them:

Lower Fence Line = Section 1 + Section 2 + Section 3
25 ft + 30 ft + 25 ft = 80 ft

How to Calculate the Upper Fence Line

The upper fence line depends on the installation. For a level-top fence, it follows the same run as the lower line:

Upper Fence Line ≈ Total Fence Run (80 ft)

If the fence follows a slope, or the top and bottom follow different paths, measure each section individually instead of assuming both lines match.

How to Calculate Fence Lines on a Slope

Follow these steps to calculate fence lines on sloped ground:

1. Measure the total horizontal run from start to end.
2. Measure the elevation change (rise) between the two ends.
3. Apply the Pythagorean theorem to find the sloping length.

Slope Length = √(Horizontal Run² + Rise²)

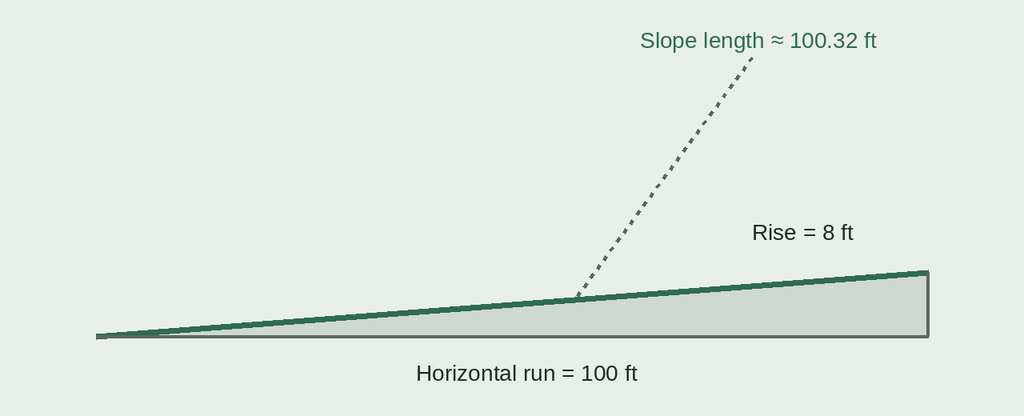

Example: a 100 ft run that rises 8 ft gives √(100² + 8²) = √10,064 ≈ 100.32 ft. The difference is small because the rise is small compared with the run. Slope length from run and rise A right triangle with a 100 foot horizontal run, an 8 foot rise, and a 100.32 foot sloping length. Horizontal run = 100 ft Slope length ≈ 100.32 ft Rise = 8 ft Slope Length = √(100² + 8²) ≈ 100.32 ft.

Stepped Fence vs. Racked Fence

Decide how the fence will follow the ground before you calculate materials.

Stepped fence

Each section stays level and sits higher or lower than the one before it, creating a stair-step look. It suits rigid panels. Calculate each section separately and add them up:

Total Fence Length = Section 1 + Section 2 + Section 3 + …

Racked fence

Panels or rails angle to follow the slope. Use the slope formula for each section:

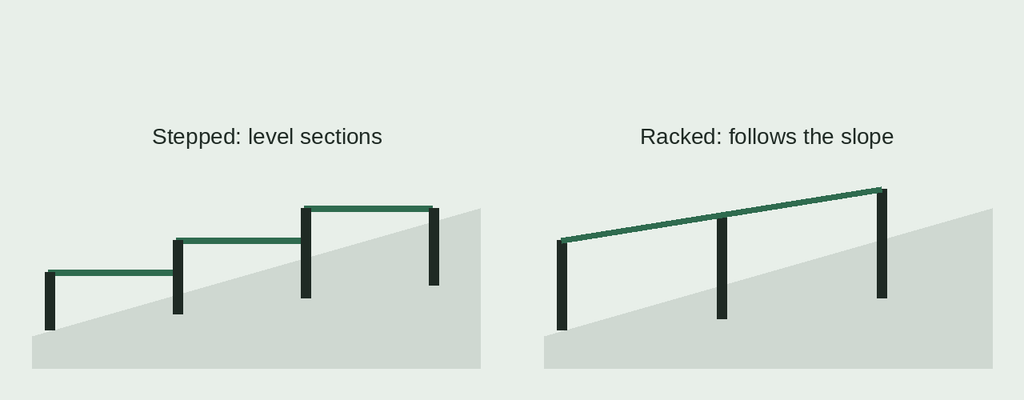

Section Length = √(Horizontal Run² + Rise²) Stepped fence compared with racked fence On the left, level panels step up a hill. On the right, panels angle to follow the slope. Stepped: level sections Racked: follows the slope Stepped fences measure each level section; racked fences measure the sloping length of each section.

Example: one racked section

Horizontal run 12 ft, elevation change 2 ft: √(12² + 2²) = √148 ≈ 12.17 ft. Repeat for every section where the slope changes.

How fence height fits in

Decide how you measure height on a slope: vertically from the ground, perpendicular to the slope, or from the lower or higher ground level. For most residential fences, the vertical height from finished ground to the top of the fence is what counts. A 6-foot fence means 6 feet vertically.

Worked Example: Three Sloped Sections

Section	Horizontal run	Rise	Sloping length
1	20 ft	0 ft	20.00 ft
2	20 ft	3 ft	20.22 ft
3	20 ft	5 ft	20.62 ft
Total	60 ft	8 ft	60.84 ft

Section 2 is √(20² + 3²) ≈ 20.22 ft and Section 3 is √(20² + 5²) ≈ 20.62 ft. The sloping total of about 60.84 ft is more accurate than assuming exactly 60 ft.

Don’t Forget Fence Posts and Concrete

Number of Spaces = Fence Length ÷ Post Spacing
Number of Posts = Spaces + 1

For an 80 ft fence with posts every 8 ft: 80 ÷ 8 = 10 spaces, so 10 + 1 = 11 posts. Add posts for corners, gates, and end posts as your fence system requires.

Hole diameter, hole depth, post size, and post count all affect how much concrete you need.

Skip the manual math.

Use the ExactYard Fence Calculator to estimate fence materials, then the ExactYard Fence Post Concrete Calculator to work out how much concrete your posts need.

Quick Summary: Upper vs. Lower Fence Line

• Level fence: Upper ≈ Lower ≈ Total Fence Run.
• Racked fence: Section Length = √(Run² + Rise²), per section.
• Stepped fence: add the horizontal lengths of each level section.

Tips for Measuring a Fence on Uneven Ground

1. Measure each section separately. Don’t assume one slope for the whole fence.
2. Mark elevation changes. Record the height difference between key points.
3. Account for gates. Measure gate openings separately from standard sections.
4. Check local requirements. Height limits and setbacks vary by location.
5. Add a material allowance. Base posts, rails, panels, fasteners, and concrete on the actual design, not just linear footage.

Frequently Asked Questions

Is the upper fence line the same as the lower fence line?

On level ground they are generally very similar. On sloped or irregular ground, the installation method can make them differ. How do I calculate a fence on a slope?

Measure the horizontal run and rise of each section, then use √(Run² + Rise²) for a fence that follows the slope. Is a stepped or racked fence better?

It depends on material, slope, appearance, and installation. Racked fencing follows the slope; stepped fencing uses separate level sections. How many fence posts do I need?

Divide the fence length by post spacing, then add one. Add posts for corners, gates, and ends. How much concrete do fence posts need?

It depends on the post count and each hole’s dimensions. A fence post concrete calculator gives a more precise number.

Final Takeaway

Once you know how to calculate upper and lower fence lines, everything else follows: posts, panels, rails, and concrete. Level fences are straightforward. On slopes, measure each section and account for the rise. Start with the ExactYard Fence Calculator, then calculate your post concrete.
